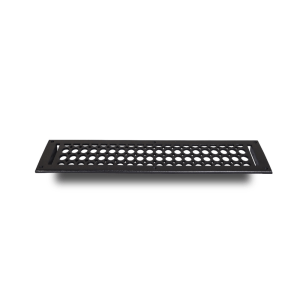

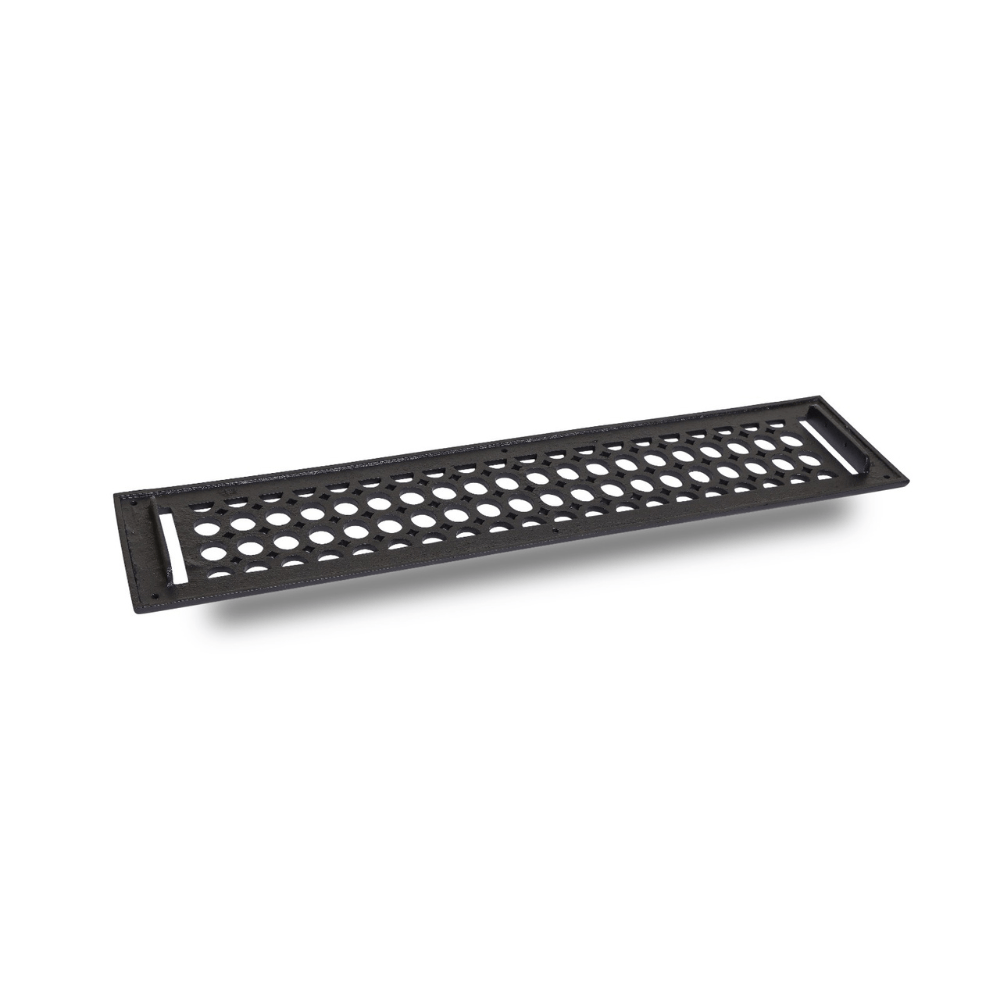

The Caststo Oval 9×20 air return grille is a decorative, heavy-duty vent cover made from 5 mm thick solid steel. It is designed to fit a standard 9″ x 20″ duct opening and has an overall faceplate size of 10.8″ x 21.5″. Its pattern of oval cut-outs with small diamond accents adds a designer touch to any wall, ceiling or floor – while keeping good airflow to your HVAC system.

Specifications

• Duct opening size: 9″ x 20″
• Overall faceplate size: 10.8″ x 21.5″
• Material: Solid steel, 5 mm thick
• Design: Caststo Oval (oval cut-out pattern)
• Colours: Powder-coated Black or White (repaintable)
• Use: Cold or hot air return – wall, ceiling or floor
• Included: Pre-drilled holes and matching screws

Why solid steel?

Most return grilles are thin stamped metal that dents, bends and rattles when the furnace or AC runs. The Caststo Oval is cut from a single 5 mm solid steel plate, so it stays flat, rigid and quiet for years. The powder-coated finish protects the steel and is easy to wipe clean.

Black or White?

Choose Black for a bold, modern contrast against light walls and wood floors, or White to blend in with white walls, ceilings and trim. Both are durable powder-coated finishes.

How to choose the right size

Always order by the duct opening, not the old grille. Remove your existing grille and measure the hole in the wall, ceiling or floor from inside edge to inside edge. If the opening measures 9″ x 20″, this grille is the right fit – its 10.8″ x 21.5″ faceplate overlaps the opening to cover rough drywall or flooring edges.

Installation

Remove the old grille and clean the opening. Hold the new grille in place, mark the holes, and fasten it with the matching screws provided. For floor openings, the grille simply sits in place. Most installations take less than 10 minutes.

Frequently asked questions

Can I use this grille on the floor?
Yes. The 5 mm solid steel faceplate is strong enough for floor use as well as walls and ceilings.

Does it work for both hot and cold air return?
Yes. It is suitable for cold air return and hot air return openings in homes and commercial spaces.

Can I change the colour later?
Yes. Lightly sand, apply a metal primer and use metal spray paint in light, even coats. See our guide below.

Do you make custom sizes?
Yes. If your opening is not a standard size, see our custom size return air grille listing.

Further reading

How to measure the duct opening size for an air return grille
How to repaint an air return grille
